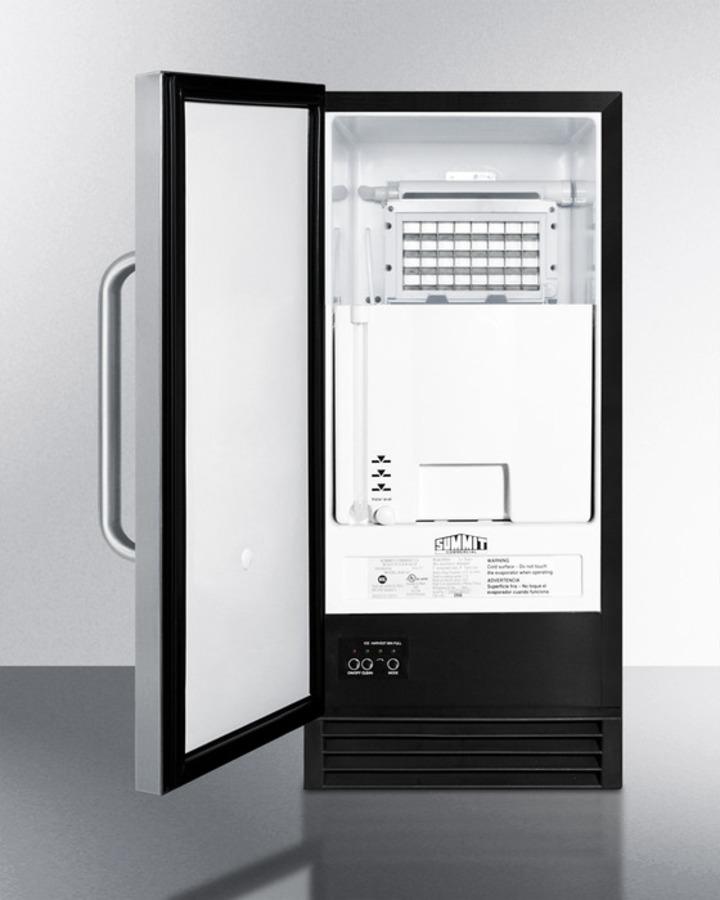

SUMMIT BIM44GADA is an auto defrost clear icemaker designed for use under ADA compliant counters. Automatic defrost makes maintenance simple and stress-free, while the BIM44GADA's front-breathing cooling system and fully finished sides allow built-in or freestanding use in 15" wide cutouts.
This unit is 32 3/8" high to fit under counters following ADA guidelines and now comes equipped with an internal pump for versatile installation. The BIM44GADA can make up to 50 pounds of clear cube-shaped ice, with an adjustable bin capacity that can temporarily hold up to 25 pounds. This unit must be used with a drain.
The BIM44GADA has a jet black cabinet with user-reversible stainless steel door (LHD is default door swing; specify upon ordering for RHD). A curved towel bar handle is included.
This unit is NSF listed for use in commercial establishments and is ENERGY STAR certified for commercial use.
ADA compliant
32 3/8" height fits under lower ADA compliant counters
ENERGY STAR certified commercial performance
Efficient performance for commercial use
Commercially approved
NSF listed for use in commercial establishments
Built-in pump
Internal pump allows more flexibility in placing the unit
Automatic defrost
Simplify appliance care by letting your icemaker defrost itself
Reversible door
Keep your options flexible with a reversible door that is easy to switch when your arrangement changes; Unit ships LHD but can be reversed in our factory or by the user
Built-in capable
Make the best use of space by installing your icemaker under the counter
Stainless steel door
Professional styling with lasting durability
Professional towel bar handle
A curved handle in brushed stainless steel offers an easy grip
Fully finished black cabinet
Allows the icemaker to be used as a freestanding model
Insulated storage bin
Ice stays solid longer in this cold-protected bin
Clear ice cube production
Makes cubes sized at 3/4" x 3/4" x 1"
Ice scoop
Included for your convenience
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
Specifications
| Overview |
|---|
| Height of Cabinet | 32.38" (82 cm) | | Width | 14.5" (37 cm) | | Depth | 23.5" (60 cm) | | Depth with Handle | 25.0" (64 cm) | | Depth with door at 90° | 36.75" (93 cm) | | Defrost Type | Automatic | | Door | Stainless Steel | | Cabinet | Black | | US Electrical Safety | UL | | Canadian Electrical Safety | ULC | | Sanitation | NSF | | Amps | 4.8 | | Voltage/Frequency | 115 V AC/60 Hz | | Weight | 100.0 lbs. (45 kg) | | Shipping Weight | 105.0 lbs. (48 kg) | | Parts & Labor Warranty | 1 Year | | Compressor Warranty | 5 Years | | UPC | 761101021959 |
| |
| Icemaker |
|---|
| Door Swing | LHD | | Reversible | Yes | | Drain Required | Yes | | Daily Ice Production | 50.0 lbs. (23 kg) | | Ice Storage Capacity | 25.0 lbs. (11 kg) | | Ice Shape | Cube | | Size of Cube | 7/8" x 7/8" x 7/8" | | Number of Ice Cube Sizes | 1 | | Fan Type | Exterior | | Refrigerant Type | R134a | | Refrigerant Amount | 3.88 oz. | | High Side PSI | 350.0 | | Low Side PSI | 130.0 | | Interior Height | 18.5" (47 cm) | | Interior Width | 12.0" (30 cm) | | Interior Depth | 16.0" (41 cm) |
| |
