TEMPERATURE & HUMIDITY CONTROL
BILD 1600 Wine Room Black (P/N 36823). Build your walk-in wine cellar with advanced CellarPro temperature and humidity refrigeration (able to handle ambient temperatures up to 110F), wood wine racking for 1,592+ bottles, light and lock for under $8 per bottle.

Construction: Shipped unassembled, BILD wine cabinets feature durable melamine laminates on all exterior surfaces and thermal and UV protection, with each panel framed and insulated using high-density foam.

Racking: BILD wine racks are made from solid wood, and slots are sized with 3 3/4" slots to accommodate oversized bottles. Racking for 640 bottles is located on the left and and on the right wall, with a walkway down the middle for easy access. In addition, 26 cubic feet of bulk storage space exists atop the racks, providing storage for up to 312 Bordeaux-size bottles, or for oversized bottles like Magnums and large Champagne bottles.

Refrigeration: Advanced CellarPro 4200VEi cooling units provide digital temperature and humidity control inside the wine cellar, with refrigeration power to handle ambient temperatures up to 110F (included).

Ventilation: The cooling unit is rear vented, meaning that the cooling unit's intake and exhaust will occur on the rear wall of the wine room, and requires 4-6 inches of clearance behind the cooling unit.

Ample clearance above or behind the cooling unit is necessary for proper air circulation, and the location must be sufficiently large for the hot air generated by the cooling unit to dissipate.

BILD 1600 wine rooms should not be placed in environments that exceed 110F or fall below 50F. Door must be locked to ensure an airtight seal.

BILD wine rooms and cabinets require assembly. All assembly hardware is included with your purchase.

Features

NOW WITH THE MOST ADVANCED AND QUIETEST COOLING UNITS FROM CELLARPRO! BILD 1600 walk-in wine rooms come with a supercharged CellarPro 4200VEi cooling unit able to handle temps up to 110F, all-wood Universal racking, double-pane tinted glass windows, locks, and lights. Our BILD Series are packed and shipped flat, and offer tremendous value and savings with many of the same features as our more expensive Le Cache wine cabinets. Features include:

• Durable Black Melamine Finish
• 3 3/4-inch Stained Hardwood Racking
• Tinted double-pane glass

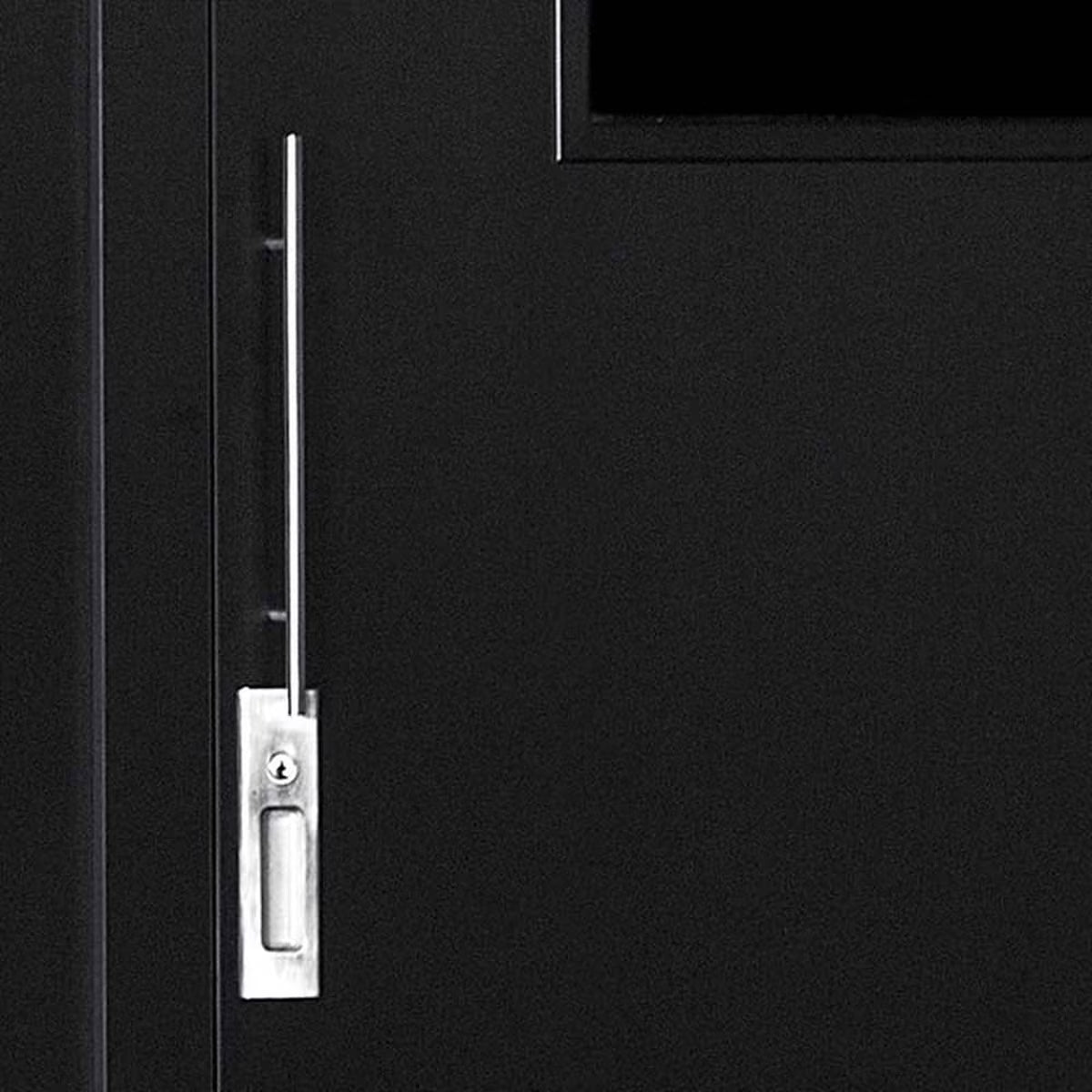

• Stainless bar pull and security locks
• CellarPro 4200VEi wine cooling unit (made in USA) - able to handle temps up to 110F
• Electronic Thermostat and Digital Display
• Adjustable Humidity Control
• Energy-Saver and Quick-Chill Modes
• Audible and Visual Alarms
• High Performance Air Filtration System
• Low-heat interior LED light
• Optional bottle probe
• R-9 in all insulated panels
• 5-year warranty on the cooling system
• One-year warranty on entire cabinet
• Optional Extended Warranty
• In-stock items ship within 2-3 days

Specs & Resources

Brand: BILD

Size: 83w x 98d x 83h (in)

Power/Rating:
115V AC / 60 Hz
Running / Startup Amps (compressor)
- CellarPro 4200VEi: 9.3 Amps / 42.0 Amps

Capacity: 1600 bottles

Material: Melamine Laminate

Warranty:
1 Year (Cabinet) / 5 Years (Cooling Unit)
Optional Extended Warranty

Click on one of the following links for more information:

• View Setup Video:

Placement Requirements

POWER REQUIREMENT:
The cooling unit plugs into a standard wall outlet, and the outlet should be on a dedicated circuit. The components of the cooling unit draw 9.3 amps. The cord extends 10 feet from the back of the cabinet. If an extension cord is used, it should be 14-gauge wire or thicker, grounded, and as short as possible. We recommend using a surge protector rated at 15 amps or more. Under no circumstances should the wine cabinet share a circuit with another motor or compressor-based appliance, like a wine cooler, fridge or air conditioner.

FLOOR SURFACE:
The floor where you'll be placing the cabinet must be completely flat. Because of the significant weight of your wine cabinet, it is important that you consider the weight load factor of the floor as compared to the weight of the cabinet.

WEIGHT LOAD FACTOR:
After loading your wine cabinet with wine bottles, it will be extremely heavy. When selecting a location for your cabinet, make sure that the floor underneath is strong enough to support the weight of the cabinet plus the weight of the bottles (approx. 4800 lbs. assuming 1600 bottles).

TEMPERATURE REQUIREMENTS:
CellarPro cooling units are designed to handle temperatures ranging from 50 to 95F.

VENTILATION REQUIREMENTS:
The cooling unit generates hot air that must be exhausted in such a way that it won't be recirculated by the cooling unit. If the hot air cannot be dissipated or channeled properly, and the cooling unit is forced to recycle its own hot air, the cooling unit will be unable to maintain cold temperatures inside the wine cabinet and/or will overheat and/or will run all the time.

The cooling unit is rear vented, meaning that the cooling unit's intake and exhaust will occur on the rear wall of the wine room, and requires 4-6 inches of clearance behind the cooling unit.

Ample clearance behind the cooling unit is necessary for proper air circulation, and the location must be sufficiently large for the hot air generated by the cooling unit to dissipate.

ASSEMBLY REQUIRED:
BILD wine rooms and cabinets require assembly. All assembly hardware is included with your purchase.

Bottle Capacity

BILD 1600 racking is located on the left and right walls for easy access, with storage capacity as follows:

• 640 bottles in 3-3/4 inch individual slots on each wall.
• 26 cubic feet of bulk storage space atop the racks, perfect for up to 312 stacked Bordeaux-size bottles, or for oversized bottles like Magnums and large Champagne bottles.

Additional storage for stacked cases is available on the floor, and is not included in the figures above.
